Solar panel earthing lugs, also known as PV grounding lugs, ensure a secure and efficient grounding connection across multiple location in solar panel.
Designed for quick installation, it provide a continuous grounding, enhancing safety and stability in solar panel systems.
Aluminium alloy body
SS fasteners
Corrosion resistance suitable for any environment

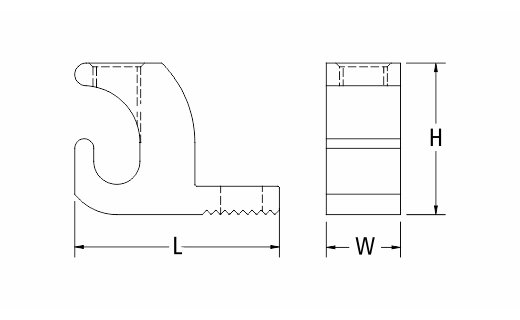

| Wire Range | L (mm) | W (mm) | H (mm) | Screw Type |
|---|---|---|---|---|
| 14 - 4 AWG (2.5 to 25 mm²) | 27.0 | 9.6 | 20.0 | Allen Grub |
